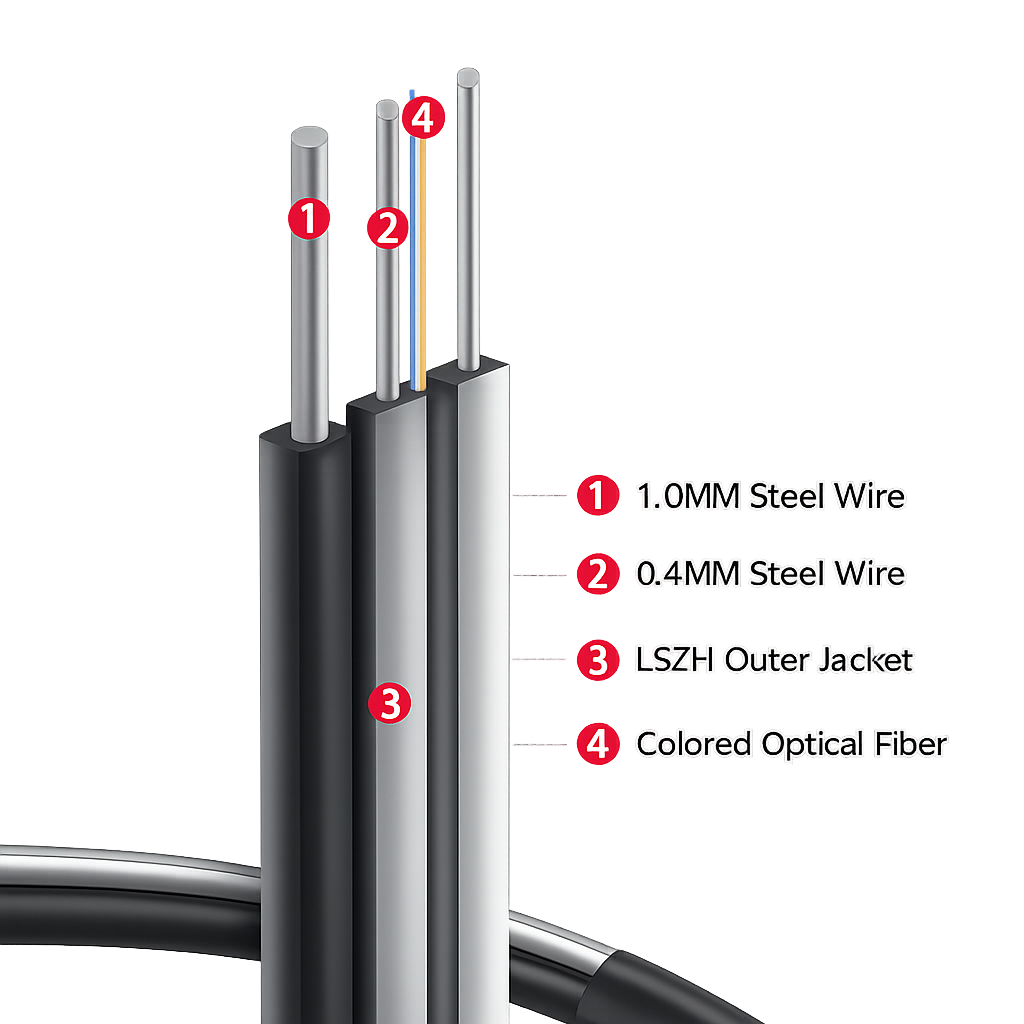

FTTH Drop Fiber Cable
Outdoor 2-core FTTH drop fiber cable designed for indoor and outdoor installations. Lightweight structure, excellent bending performance, and stable transmission make it ideal for FTTH access networks.
Request a QuoteProduct Features
FTTH Optimized
Designed specifically for FTTH indoor and outdoor deployment.
Flexible Structure
Excellent bending radius for easier installation in narrow spaces.
Stable Transmission
Low attenuation ensures reliable signal performance.
Durable Protection
LSZH sheath provides safety and long service life.
Technical Specifications
| Product Name | Outdoor 2-Core Drop Fiber Cable |
| Outer Jacket | LSZH Sheath |
| Fiber Attenuation | 1310nm ≤ 0.36 dB/km / 1550nm ≤ 0.22 dB/km |
| Temperature Range | -40°C to +70°C |
| Allowable Tensile Force | Long-term: 500N / Short-term: 800N |
| Crush Resistance | 800 times, H = 1m |
| Strength Member | 1mm Phosphorized Steel Wire |
| Installation Method | FTTH Indoor Installation |
| Weight | 1000m / 20kg |
| Fiber Material | G657A / G652D |
Ordering, warranty and delivery
1-year warranty
Confirm the warranty scope and service procedure in your quotation.
Stock availability
Regular models are available from stock. Confirm the exact model and current stock with sales before ordering.
Factory dispatch
Production through factory dispatch typically takes about one week, subject to confirmation for your specific order.
Shipping time is additional
Transit time depends on the shipping method and destination. Shipping is arranged according to customer requirements; confirm the method and estimate with sales.
Support in your language
We can communicate in your language and help confirm specifications and order details before purchase.
