Laser Power Meter System

Selected Chinese-made laser power meter display units and probes for industrial lasers, laboratory testing and OEM integration.

Practical Laser Power Measurement Solutions

DDUTEC provides laser power measurement systems combining display meters, fan-cooled probes, water-cooled probes and OEM output options.

Compared with international high-end brands such as Ophir, these Chinese-made solutions are positioned as practical and cost-effective options for customers who need usable measurement capability, flexible interfaces and fast sourcing support from China.

Contact for Quote

Display Meter & Probe Options

Choose the display meter and suitable probe first, then confirm wavelength, beam diameter, power density, cooling condition and interface requirement.

CHLP-P laser power meter display

CHLP-P Display Meter

Handheld laser power meter display with data statistics, storage, PC software and USB 2.0 communication support.

View CHLP-P Display Meter

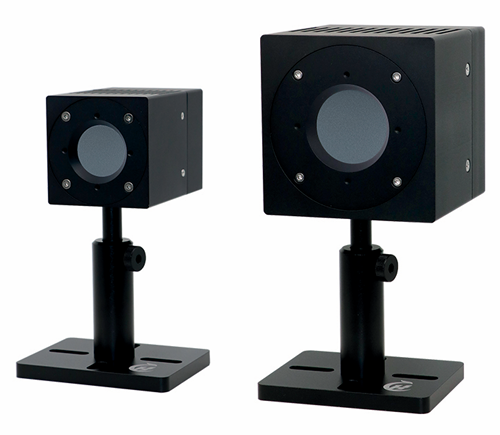

F250 fan-cooled laser power probe

F250 Fan-Cooled Probe

250W-class fan-cooled probe for 200W/250W industrial laser power measurement.

View F250 Fan-Cooled Probe

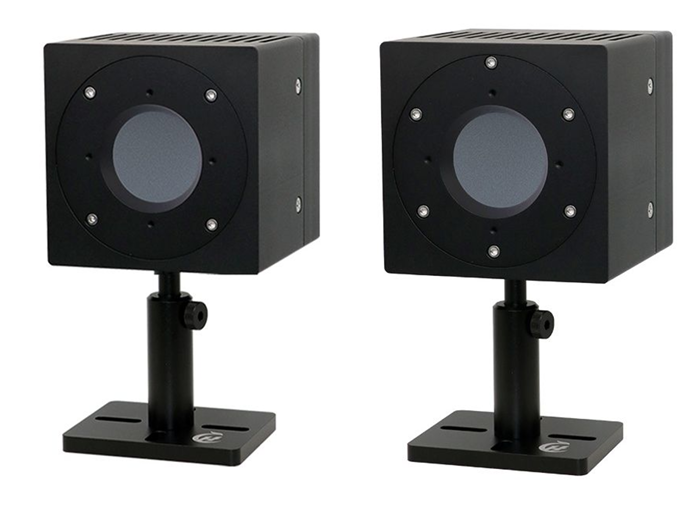

F600 fan-cooled laser power probe

F600 Fan-Cooled Probe

600W-class fan-cooled probe for 500W/600W industrial laser output testing.

View F600 Fan-Cooled Probe

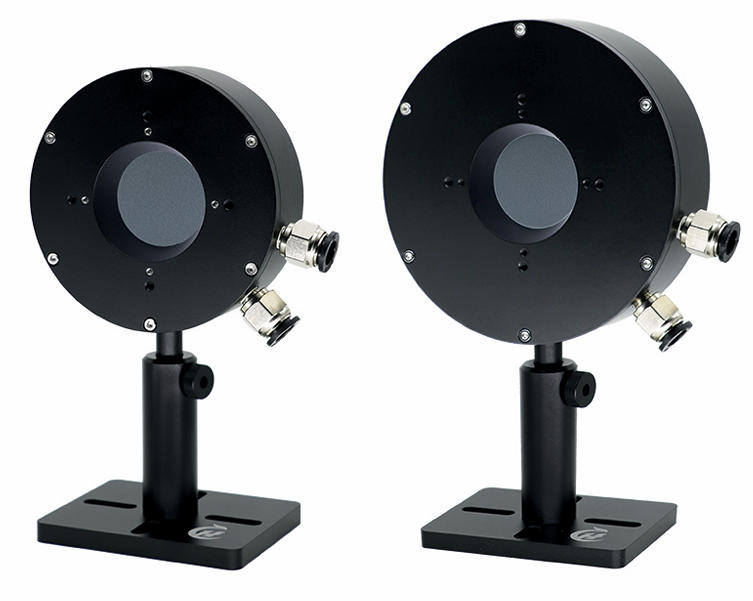

W1000 water-cooled laser power probe

W1000 Water-Cooled Probe

1kW compact water-cooled probe for common industrial fiber laser applications.

View W1000 Water-Cooled Probe

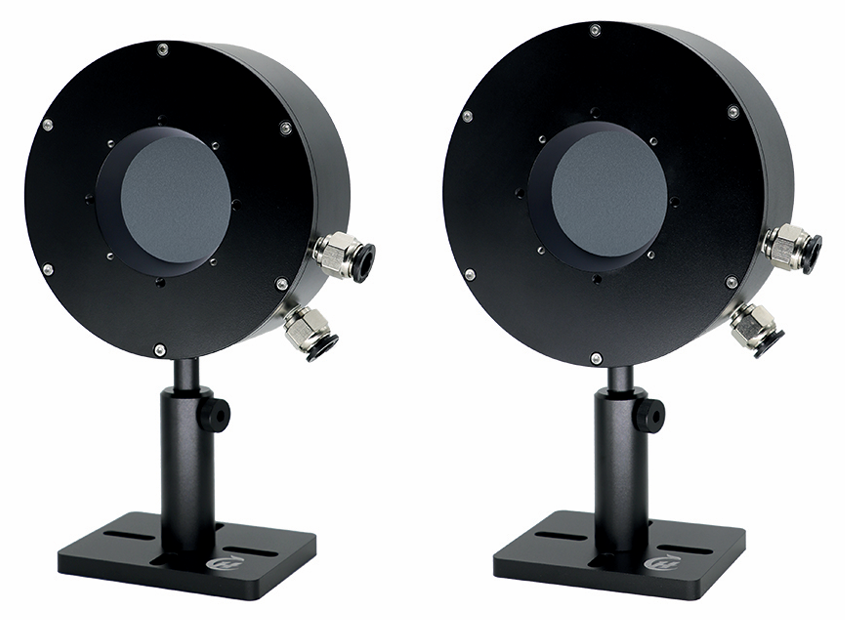

3kW 5kW water-cooled laser power probe

3kW / 5kW Water-Cooled Probe

High-power water-cooled probes for cutting, welding and production-line verification.

View 3kW / 5kW Water-Cooled Probe

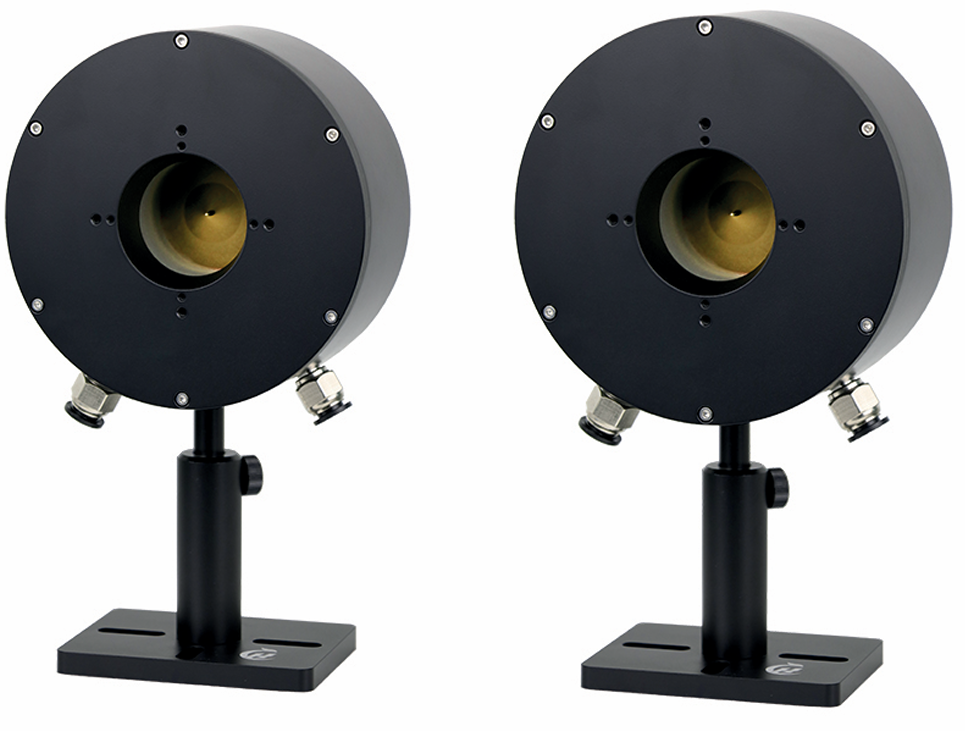

W10K industrial laser power probe

W10K Industrial Probe

10kW-class cone-structure water-cooled probe for fiber laser and CO2 laser applications.

View W10K Industrial Probe

How to Select a Laser Power Meter System

Professional selection should not rely on rated power only.

Display & Data

Confirm whether data statistics, storage, PC software, USB communication and report export are required.

Laser Parameters

Confirm wavelength, average power, peak power, CW/pulsed operation and exposure time.

Beam Conditions

Confirm beam diameter, spot position, power density and required detector aperture.

Cooling Method

Choose natural cooling, fan cooling or water cooling. For water-cooled probes, confirm flow rate and water quality.

Reference Comparison

Ophir models are used only as reference points for specification comparison. DDUTEC does not claim full drop-in replacement. Final model selection should be confirmed according to wavelength, power density, beam size, cooling condition, calibration requirement, display meter requirement and installation method.

Compare Industrial Laser Power Sensors

A laser power meter system combines a suitable sensor with a compatible display or data interface. Use the application range below as a starting point, then confirm wavelength, beam diameter, absorber limits and measurement duration.

Sensor familyApplication powerCooling
F250200W / 250W testingFan cooling
F600500W / 600W testingFan cooling
W10001kW testingWater cooling
W3000 / W50003kW / 5kW testingWater cooling
W10K / W15K10kW / 15kW testingWater cooling

1064 nm fiber laser and 10.6 µm CO2 laser selection

Check the spectral range of the specific absorber version. The listed F250 and W1000 DC versions cover 0.24–2.2 µm; their CB versions cover 0.19–25 µm. W10K/W15K coverage is listed separately as 0.8–2 µm and 10.6 µm. Do not select a probe using rated power or spectral coverage alone.

Display and OEM data acquisition

For a complete system, review the CHLP-P USB laser power meter display. Optional probe USB output must be confirmed for the selected configuration. Send your interface, software, sampling and integration requirements with the inquiry.

Ordering, warranty and delivery

1-year warranty

Confirm the warranty scope and service procedure in your quotation.

Stock availability

Regular models are available from stock. Confirm the exact model and current stock with sales before ordering.

Factory dispatch

Production through factory dispatch typically takes about one week, subject to confirmation for your specific order.

Shipping time is additional

Transit time depends on the shipping method and destination. Shipping is arranged according to customer requirements; confirm the method and estimate with sales.

Calibration documentation

Calibration certificates accompany applicable measurement products. Confirm the instrument, calibration scope and document requirements before ordering.
